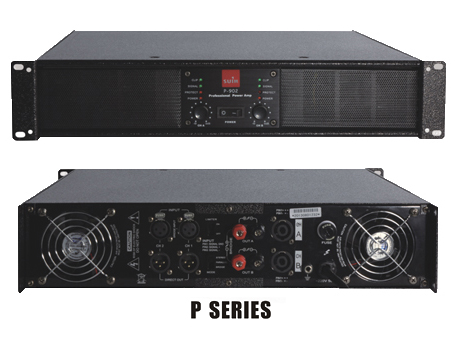

P SERIES

Output Power  (1kHZ, 0.01% THD+N)

P-302

P-502

P-702

P-902

RMS into 8 Ohm(stereo mode)

350W

500W

700W

900W

RMS into 4 Ohm(stereo mode)

520W

750W

1050W

1350W

RMS into 2 Ohm(stereo mode)

/

/

/

/

RMS into 8 Ohm(bridge mode)

1040W

1500W

2100W

2700W

RMS into 4 Ohm(bridge mode)

/

/

/

/

Frequency Response(0/-1dB, 1W/8Ω)

20-20KHz

20-20KHz

20-20KHz

20-20KHz

THD+N (at 8Ω/1kHz and -dB under clip)

<0.09%

<0.09%

<0.09%

<0.09%

Damping Factor (10-400Hz/8Ω)

300:1

400:1

500:1

500:1

Input Sensitivity (8 ohm stereo)

1V

1V

1V

1V

Input Impedance (bal/unbal)

>20k/>10k

>20k/>10k

>20k/>10k

>20k/>10k

S/N(dB)

-100dB

-100dB

-100dB

-100dB

Connector Input

XLR

XLR

XLR

XLR

Connector Output

2xSpeakon

2xSpeakon

2xSpeakon

2xSpeakon

Operating Voltage

~220V, 50Hz

~220V, 50Hz

~220V, 50Hz

~220V, 50Hz

Dimension (WxHxD) mm

483x89x451mm

483x89x451mm

483x89x451mm

483x89x451mm

Net Weight (kg)

15

16.5

20.5

24
