LINE ARRAY

LA4


Description




Technical data



SPECIFICATION

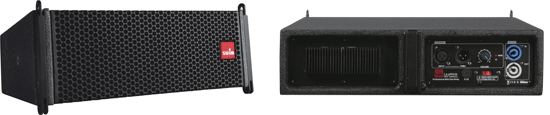

LA4MH

LA4MHA

Type

4”, 2-way Mid-High, Linearray Module

4”, 2-way Mid-High, Linearray Module

Frequency Range (-10dB)

95Hz~18kHz

95Hz~18kHz

Frequency Response (±3dB)

105Hz~17kHz

105Hz~17kHz

Coverage Pattern

100°V x 20°H nominal

100°V x 20°H nominal

Sensitivity (1w/1m) (SPL)

90 dB

90 dB

Sensitivity Max. (SPL)

112 dB

112 dB

Power Rating (Continuous/Program)

80/160 watts

80/160 watts

Nominal Impedance

16 Ohms

16 Ohms

Crossover Frequency

3.5 kHz

3.5 kHz

Drivers

LF: 2x4"/HF: 1X1"

LF: 2x4"/HF: 1X1"

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (WxHxD)

394x165x360mm

394x165x360mm

Package (WxHxD)

450x405x400mm

450x405x400mm

Q’ty for package

2 PCS / 1CTN

2 PCS / 1CTN

Weight (Kg)

6

7.5






Technical data



SPECIFICATION

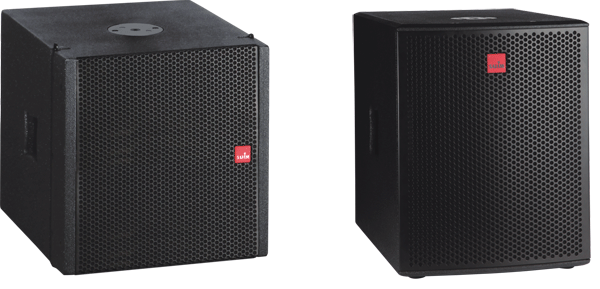

LA4-12DV/A

GS4-12DV/A

Type

 12",Bass reflex type subwoofer

                12",Bass reflex type subwoofer

Frequency Response (±3dB)

40Hz~250Hz

40Hz~250Hz

Sensitivity (1w/1m) (SPL)

100 dB

100 dB

Sensitivity Max. (SPL)

124 dB

124 dB

Power Rating (RMS)

400 watts

400 watts

Nominal Impedance

8 Ohms

8 Ohms

Drivers

12",TC-12/400SW

12",TC-12/400SW

Appearance Finish

Polyurea coating

Dimensions (WxHxD)

394x480x600mm

390x4465x580mm

Package (WxHxD)

445x525x655mm

435x500x635mm

Q’ty for package

1 PCS / 1CTN

1 PCS / 1CTN

Weight (Kg)

25

24
