Specification
|

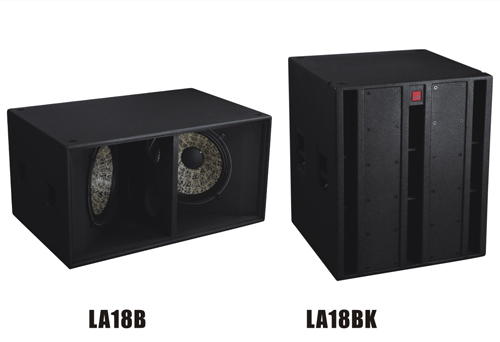

LA18B
|
LA18BK
|
|
Type
|
2x18" Bass reflex,sub-woofer
|
2x18" Semi Band-pass,sub-woofer
|
|
Frequency Range(-10dB)
|
40Hz~290Hz
|
35Hz~280Hz
|
|
Frequency Response(+3dB)
|
45Hz~280Hz
|
40Hz~270Hz
|
|
Coverage pattern
|
Omni
|
Omni
|
|
Sensitivity(1W/1m) (SPL)
|
101 dB
|
103 dB
|
|
Sensitivity Max.(SPL)
|
134 dB
|
137 dB
|
|
Power Rating (Continous/Program/Peak)
|
1200/2400/4800 watts
|
1600/3200/6400 watts
|
|
Nominal Impedance
|
4 Ohms
|
4 Ohms
|
|
Input Connectors
|
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output)
|
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output)
|
|
Crossover Mode
|
Active
|
Active
|
|
Crossover Frequency
|
Adjustable with speaker controller
|
Adjustable with speaker controller
|
|
Drivers
|
2x18" (HQ18S/SUIM),with Zebra Conepaper
|
2x18" (HQ18S/SUIM),with Zebra Conepaper
|
|
Enclosure
|
18mm Plywood
|
18mm Plywood
|
|
Appearance Finish
|
Water-borne (Green Eco), Sand texture painting
(4 times)
|
Water-borne (Green Eco), Sand texture painting
(4 times)
|
|
Dimensions (W×H×D)
|
1170X610X760
|
820X860X725
|
|
Package(W×H×D):
|
1230X645X810
|
875X905X775
|
|
Q'ty for package
|
1 PCS / 1 CTN
|
1 PCS / 1 CTN
|
|
Weight (Kg)
|
80Kg
|
85Kg
|
