Description
Technical Data
Specification

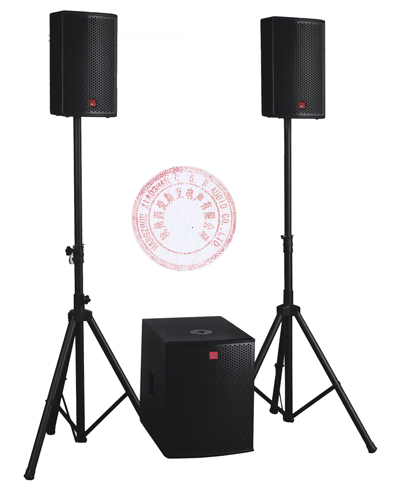

EX80 TOP
Type
8", 2-Way Mid-High range cabinet
Frequency response(±3dB)
75Hz~17kHz
Coverage pattern
60°H x 40°V nominal
Sensitivity (1w/1m) (SPL)
97 dB
Sensitivity Max. (SPL)
117 dB
Power Rating (RMS)
100 watts
Nominal Impedance
8 Ohms
Input Connectors
1xNutrik Speakon, NL4, 1+/1-
Crossover Frequency
2.7kHz
Drivers
HF: 1"x1; LF: 8"x1
Enclosure
15mm Plywood
Grill
Steel grill with acoustic foam
Appearance Finish
Water-borne(Green Eco), Sand texture painting
Dimensions (WxHxD)
260x455x245mm
Package (WxHxD)
560x495x315mm
Q"ty for package
2pcs/1 CTN, inner and outer carton, double package
Weight (Kg)
8 kg
Specification
EX15 SUB
Type
15" Bass reflex type subwoofer
Frequency response(±3dB)
40Hz~250Hz
Sensitivity (1w/1m) (SPL)
101dB
Sensitivity Max. (SPL)
127dB
Nominal Impedance
8 Ohms
Drivers
15" (3" Voice Coil 500watts) x1
Enclosure
15mm Plywood
Grill
Steel grill with acoutstic foam
Appearance Finish
Water-borne(Green Eco), Sand texture painting
Dimensions (WxHxD)
420x540x595mm
Package (WxHxD)
465x580x645mm
Q"ty for package
1pcs/1CTN, inner and outer, double package
Weight (Kg)
39 kg
Technical Data for Amp. Module
Mode Type
Bi-Amp System
Output Power/Subwoofer
600W RMS
Output Power/Mid-Hi (Top)
200W RMSx2
Input Impedance
33k Ohms
Gain Controls
Line: 0dBV
OPeration Voltage
115Volt.or 230Volt.
