Features & Application
|
|
1. HF compression driver with 1 3/4" Voice Coil / 1.5" Horn throat.
|
|
2. LF driver with 12" (400 watt/RMS) /Zebra conepaper
|
|

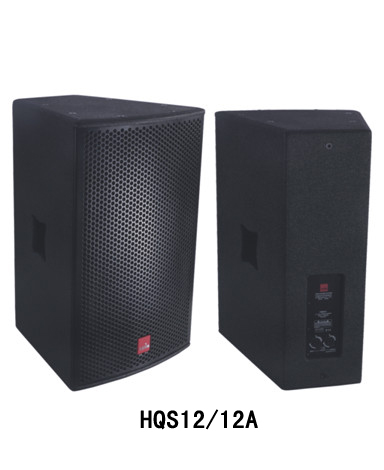

3. 12" 2-way passive fullrange system.
|
|
4. M8 X 10 screw-nuts for installation or flying.
|
|
5. Pair flying are possible with flying frame / FM-02.
|
|
6. Flange adapter (tube dia. 35mm).
|
|
7. Rotatable logo Badge.
|
|
8. Water-borne sand texture painting appearance (4 times)
|
|
9. Rotatable Horn for flying.
|
|
10. Compact design.
|
|
11. Double carton package.
|
|
12. Multi-purpose Usage.
|
|
Specification
|
|
Type
|
12" , 2-Way Fullrange
|
|
Frequency Range(-10dB)
|
50Hz~20kHz
|
|
Frequency Response(+3dB)
|
65Hz~19kHz
|
|
Coverage pattern
|
90°H X 60°V nominal
|
|
Sensitivity(1W/1m) (SPL)
|
101 dB
|
|
Sensitivity Max.(SPL)
|
130 dB
|
|
Power Rating (Continous/Program/Peak)
|
400/ 800 / 1600 watts
|
|
Nominal Impedance
|
8 Ohms
|
|
Input Connectors
|
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output)
|
|
Crossover Mode
|
Passive
|
|
Crossover Frequency
|
1.8 kHz
|
|
Drivers
|
HF: CSR150D/SUIMx1 , LF: HQ12/ SUIM x1.
|
|
Enclosure
|
15mm Plywood
|
|
Appearance Finish
|
Water-borne (Green Eco), Sand texture painting (4 times)
|
|
Dimensions (W×H×D)
|
385X620X400
|
|
Package(W×H×D):
|
445X660X435
|
|
Q'ty for package
|
1 PCS / 1 CTN, Inner and outer carton, double package.
|
|
Weight (Kg)
|
24/27
|
|
Suspensive/Mounting
|
35mm tube socket, M8 X 10 Screw nuts for U-Bracket or wire flying.
|
