Sequence Power Switch
(CR-8N,CR-8NL,CR-8NM)
|

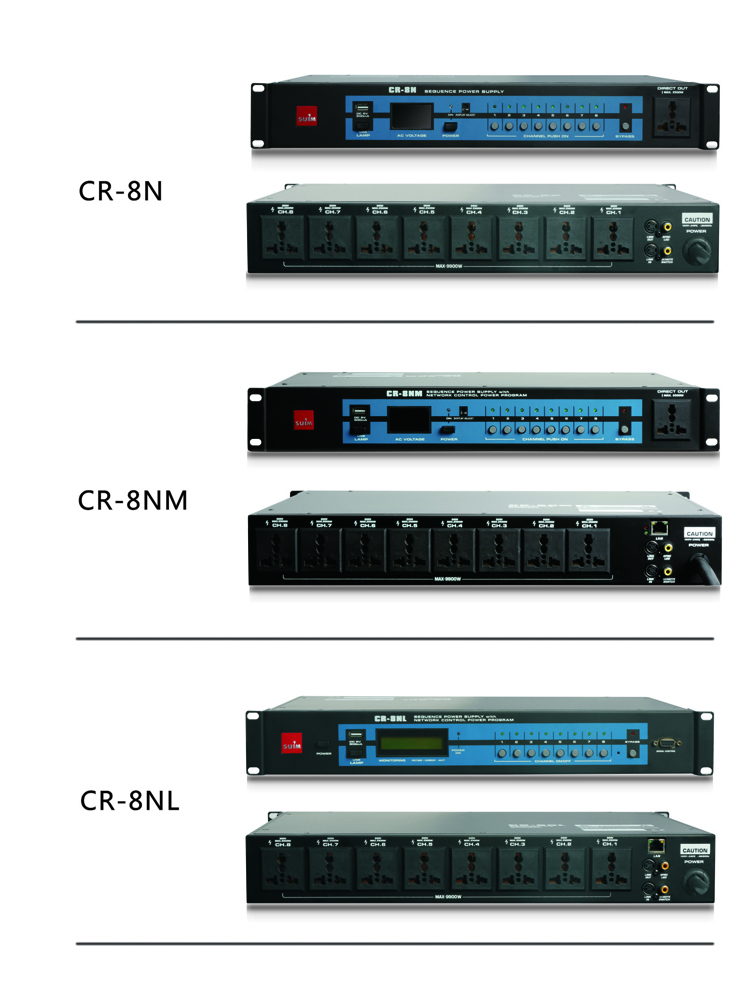

CR-8N
|
CR-8NM
|
CR-8NL
|
|
Feature
|
Line Voltage display
Link control
Remote control
|
Line Voltage display
smart phone control
PC control
|
Adjustable output channel time lag
Limited power off
control(Voltage, current)
Auto power on/off
scheduling
Line Voltage &
Current read(1 ~ 8CH)

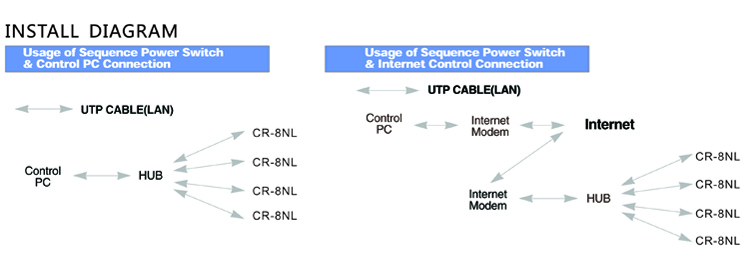

Internet control
Serial control
Link control
Remote control
|
|
Display
|
AC line voltage
|
AC line voltage
|
AC line voltage, Load total current,
Load total watt Set
number, watch
16x2 text LCD
|
|
Control Channel
|
8 channel, Direct out 1channel
|
8 channel, Direct out 1channel
|
8 channel
|
|
Load per channel
|
220V/10A(2200W), 117V/15A
|
220V/10A(2200W), 117V/15A
|
220V/10A(2200W), 117V/15A
|
|
Current
|
/
|
/
|
Resolution 1mA
|
|
Range
|
/
|
/
|
1mA ~ 25A
|
|
Time Lag
|
0~999 sec.Constant
Power Channel
|
0~999
sec.Constant Power Channel
|
1Sec ~ 18Hour
|
|
Link control
|
Unlimited allow
|
Unlimited allow
|
Unlimited allow
|
|
Remote control
|
RCA jack
|
RCA jack
|
RCA jack
|
|
Output connector
|
three wire AC
connector
|
three wire AC connector
|
three wire AC
connector
|
|
Control link
connector
|
mini-din 4pin
|
mini-din 4pin
|
mini-din 4pin
|
|
Ethernet connector
|
/
|
RJ-45 100Base-T/(Smart Phone Control / Android & IPHONE)
|
RJ-45 100Base-T/Android & IPHONE
|
|
Serial connector
|
/
|
/
|
Dsub 9pin Female
|
|
DC 24V output
|
1.5A max(screw
terminal)
|
1.5A max(screw terminal)
|
1.5A max(screw
terminal)
|
|
LED lamp connector
|
USB
jack(DC5V/500mA)
|
USB jack(DC5V/500mA)
|
USB
jack(DC12V/500mA)
|
|
Power
|
AC90V ~ 240V / 50Hz ~ 60Hz
|
AC90V ~ 240V / 50Hz ~ 60Hz
|
AC90V ~ 240V / 50Hz ~ 60Hz
|
|
Dimension (WxHxD)
|
480mm x 66mm x
330mm
|
480mm x 66mm x 330mm
|
480mm x 66mm x
330mm
|
