Specification
|

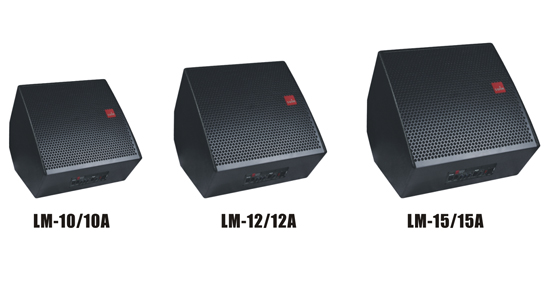

LM-10/10A
|
LM-12/12A
|
LM-12/12A
|
|
Type
|
10" , 2-Way Fullrange, Coaxial, floor monitor type
|
12" , 2-Way Fullrange, Coaxial, floor monitor type
|
15" , 2-Way Fullrange, Coaxial, floor monitor type
|
|
Frequency Range(-10dB)
|
55Hz~20kHz
|
50Hz~20kHz
|
50Hz~20kHz
|
|
Frequency Response(+3dB)
|
65Hz~18kHz
|
60Hz~18kHz
|
55Hz~18kHz
|
|
Coverage pattern
|
90°H X 90°V nominal
|
90°H X 90°V nominal
|
90°H X 90°V nominal
|
|
Sensitivity(1W/1m) (SPL)
|
97 dB
|
98 dB
|
100 dB
|
|
Sensitivity Max.(SPL)
|
118 dB
|
120 dB
|
128 dB
|
|
Power Rating (Continous/Program/Peak)
|
150/300/600 watts
|
200/400/800 watts
|
300/600/1200 watts
|
|
Nominal Impedance
|
8 Ohms
|
8 Ohms
|
8 Ohms
|
|
Input Connectors
|
2XSpeakon, NL4, 1+ / 1- (Linked from input to output)
|
2XSpeakon, NL4, 1+ / 1- (Linked from input to output)
|
2XSpeakon, NL4, 1+ / 1- (Linked from input to output)
|
|
Crossover Mode
|
Passive
|
Passive
|
Passive
|
|
Crossover Frequency
|
2700 kHz
|
2000 kHz
|
2800 kHz
|
|
Drivers
|
HF: 1X1" / SUIM, LF: 1X10" / SUIM
|
HF: 1X1" / SUIM, LF: 1X12" / SUIM
|
HF: 1X1" / SUIM, LF: 1X15" / SUIM
|
|
Enclosure
|
15mm Plywood
|
15mm Plywood
|
15mm Plywood
|
|
Appearance Finish
|
Water-borne (Green Eco), Sand texture painting (4 times)
|
Water-borne (Green Eco), Sand texture painting (4 times)
|
Water-borne (Green Eco), Sand texture painting (4 times)
|
|
Dimensions (W×H×D)
|
380X360X360mm
|
420X400X395mm
|
460X450X430mm
|
|
Package(W×H×D):
|
430X400X405mm
|
470X440X445mm
|
510X490X475mm
|
|
Q'ty for package
|
1 PCS / 1 CTN, Inner and outer carton, double package.
|
1 PCS / 1 CTN, Inner and outer carton, double package.
|
1 PCS / 1 CTN, Inner and outer carton, double package.
|
|
Weight (Kg)
|
15/16.5kg
|
17/18.5kg
|
20/21.5kg
|
|
Suspensive/Mounting
|
35mm tube socket, M8X3 Screw nuts for U-Bracket or wire flying.
|
35mm tube socket, M8X3 Screw nuts for U-Bracket or wire flying.
|
35mm tube socket, M8X3 Screw nuts for U-Bracket or wire flying.
|
|
Technical Data for Amp. Module LM10A
|
|
Output Power
|
150W RMS
|
200W RMS
|
300W RMS
|
|
Input Type
|
Balanced differential
|
Balanced differential
|
Balanced differential
|
|
Input Impedance
|
20K Ohms
|
20K Ohms
|
20K Ohms
|
|
Rated THD
|
<0.03%
|
<0.03%
|
<0.03%
|
|
Line Connectors
|
Line: XLR
|
Line: XLR
|
Line: XLR
|
|
Output Connectors
|
Line Loop Thru: XLR / Male;Mic.input:Combo Jack
|
Line Loop Thru: XLR / Male;Mic.input:Combo Jack
|
Line Loop Thru: XLR / Male;Mic.input:Combo Jack
|
|
Operation Voltage
|
~115 or ~230v
|
~115 or ~230v
|
~115 or ~230v
|
