Features & Application
|
|
1. HF compression driver with 1.75" Voice
Coil / 1.5" Horn throat.
|
|
2. LF driver with 12" (400 watt/RMS) / Zebra conepaper.
|
|
3.

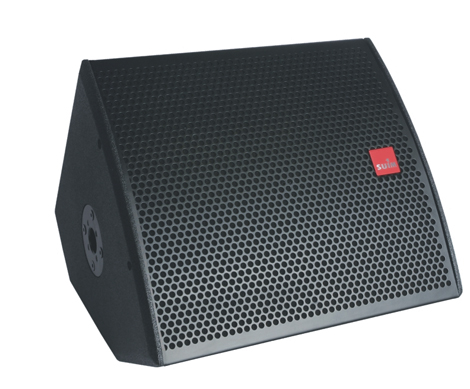

12" 2-way fullrange system. (Coaxial type)
|
|
4. M8 X 3, screw-nuts for installation or
flying.
|
|
5. Flange adapter (tube dia. 35mm).
|
|
6. Rotatable logo Badge.
|
|
7. Water-borne sand texture painting
appearance (4 times)
|
|
8.
Cross-over fixed on terminal board for easy repairing.
|
|
9. Compact design.
|
|
10. Double carton package.
|
|
11. Steel
Grill with acoustic foam.
|
|
12.
Multi-purpose Usage.
|
|
Specification
|
|
Type
|
12" , 2-Way
Fullrange, Coaxial, floor monitor type
|
|
Frequency
Range(-10dB)
|
45Hz~20kHz
|
|
Frequency
Response(+3dB)
|
55Hz~18kHz
|
|
Coverage
pattern
|
90°H X 90°V
nominal
|
|
Sensitivity(1W/1m)
(SPL)
|
101 dB
|
|
Sensitivity
Max.(SPL)
|
129 dB
|
|
Power
Rating (Continous/Program/Peak)
|
400/ 800/ 1600
watts
|
|
Nominal
Impedance
|
8 Ohms
|
|
Input
Connectors
|
2XNutik ®
Speakon, NL4 , 1+ / 1- (Linked from
input to output)
|
|
Crossover
Mode
|
Passive
|
|
Crossover
Frequency
|
2000 kHz
|
|
Drivers
|
Coaxial type:
CX-12/400 / SUIM X 1
|
|
Enclosure
|
15mm Plywood
|
|
Appearance
Finish
|
Water-borne
(Green Eco), Sand texture painting (4 times)
|
|
Dimensions
(W×H×D)
|
430X480X375mm
|
|
Package(W×H×D):
|
480X525X420mm
|
|
Q'ty for
package
|
1 PCS / 1 CTN,
Inner and outer carton, double package.
|
|
Weight
(Kg)
|
19/20kg
|
|
Suspensive/Mounting
|
35mm tube socket,
M8 X 3 Screw nuts for U-Bracket or wire flying.
|
|
Technical Data for Amp. Module LH12A
|
|
Output
Power
|
500W RMS
|
|
Input
Type
|
Balanced
differential
|
|
Input
Impedance
|
20K Ohms
|
|
Rated THD
|
<0.03%
|
|
Line
Connectors
|
Line: XLR
|
|
Output
Connectors
|
Line Loop
Thru: XLR / Male
|
|
Operation
Voltage
|
~100-120v
or ~220-240v
|
