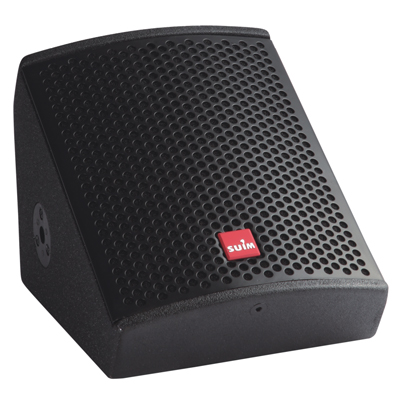

SM8


Description







Technical data



 Features & Application

1.  Stand installation with monitor type (two-way type)

2.  HF driver with 1" Voice Coil.

3.  LF driver with 8"  (100 watt/RMS).

4.  8" 2-way passive fullrange system.

5.  Rotatable logo Badge.

6.  Water-borne sand texture painting appearance (4 times)

7.  Compact design.

8.  Double carton package.

 Specification

Type

8" , 2-Way Fullrange System, monitor type

Frequency Range(-10dB)

80Hz~20kHz

Frequency Response(+3dB)

70Hz~18kHz

Coverage pattern

90°H X 90°V nominal

Sensitivity(1W/1m) (SPL)

96 dB

Sensitivity Max.(SPL)

118 dB

Power Rating (Continous/Program/Peak)

100 / 200 / 400 watts

Nominal Impedance

8 Ohms

Crossover Frequency

5 kHz

Drivers

HF: SM8/SUIM X 1,   LF: TC-8/100SM / SUIM  X 1

Enclosure

12mm Plywood

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (W×H×D)

250X325X250mm

Package(W×H×D):

300X370X290mm

Q'ty for package

1 PCS / 1 CTN

Weight (Kg)

6kg
