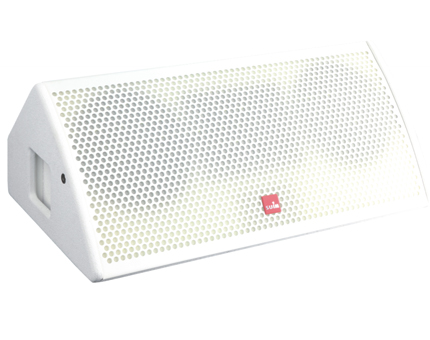

SM82


Description



Technical data



Features & Application

1.  Stand installation with monitor type (two-way type)

2.  HF driver with 1" Voice Coil.

3.  LF driver with 8"X2  (200 watt/RMS).

4.  8" 2-way passive fullrange system.

5.  M8 X 2 screw-nuts for installation or flying.

6.  Rotatable logo Badge.

7.  Water-borne sand texture painting appearance (4 times)

8.  Compact design.

9.  Double carton package.

 Specification

Type

8" , 2-Way Fullrange System, monitor type

Frequency Range(-10dB)

60Hz~18kHz

Frequency Response(+3dB)

55Hz~17kHz

Coverage pattern

60°H X 40°V nominal

Sensitivity(1W/1m) (SPL)

98 dB

Sensitivity Max.(SPL)

122 dB

Power Rating (Continous/Program/Peak)

200/ 400/ 600 watts

Nominal Impedance

8 Ohms

Crossover Frequency

2.1 kHz

Drivers

HF: HT200/SUIM X 1,   LF: TC-8/100N/ SUIM  X 2

Enclosure

15mm Plywood

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (W×H×D)

660X335X270mm

Package(W×H×D):

710X395X295mm

Q'ty for package

1 PCS / 1 CTN

Weight (Kg)

13.5kg

Suspensive/Mounting

M8 X 2 Screw nuts for U-Bracket or wire flying.
