RQS

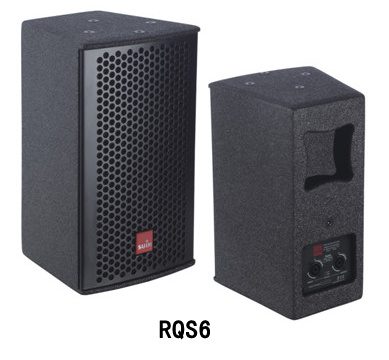

Features & Application

1.  HF driver with 1" Voice Coil.

2.  LF driver with 6.5" (100 watt/RMS).

3.  6.5" 2-way passive fullrange system.

4.  M8 X 4, screw-nuts for installation or flying.

5.  Flange adapter (tube dia. 35mm).

6.  Rotatable logo Badge.

7.  Water-borne sand texture painting appearance (4 times)

8.  Compact design.

9.  Double carton package.

10. Multi-purpose Usage.

Specification

Type

6.5", 2-Way Fullrange

Frequency Range(-10dB)

80Hz~18kHz

Frequency Response(+3dB)

90Hz~17kHz

Coverage pattern

90°H X 90°V nominal

Sensitivity(1W/1m) (SPL)

95 dB

Sensitivity Max.(SPL)

114 dB

Power Rating (Continous/Program/Peak)

100/ 200 / 400 watts

Nominal Impedance

8 Ohms

Input Connectors

2XSpeakon, NL4,  1+ / 1- (Linked from input to output)

Crossover Mode

Passive

Crossover Frequency

3.5 kHz

Drivers

HF: 1X1" / LF: 1X6.5"

Enclosure

12mm MDF

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (W×H×D)

205X370X215

Package(W×H×D):

480X410X260

Q'ty for package

2 PCS / 1 CTN, Inner and outer carton, double package.

Weight (Kg)

6

Suspensive/Mounting

35mm tube socket, M8 X 4 Screw nuts for U-Bracket or wire flying.

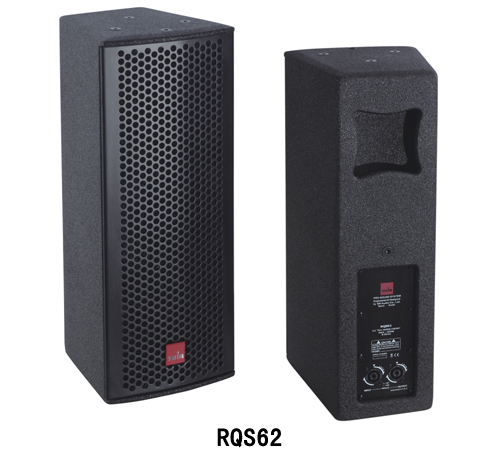

Features & Application

1.  HF driver with 1" Voice Coil.

2.  LF driver with 6.5"X2  (200 watt/RMS).

3.  6.5" 2-way passive fullrange system.

4.  M8 X 4 screw-nuts for installation or flying.

5.  Flange adapter (tube dia. 35mm).

6.  Rotatable logo Badge.

7.  Water-borne sand texture painting appearance (4 times)

8.  Compact design.

9.  Double carton package.

10. Multi-purpose Usage.

Specification

Type

6.5"X2 , 2-Way Fullrange

Frequency Range(-10dB)

80Hz~18kHz

Frequency Response(+3dB)

90Hz~17kHz

Coverage pattern

90°H X 60°V nominal

Sensitivity(1W/1m) (SPL)

97 dB

Sensitivity Max.(SPL)

123 dB

Power Rating (Continous/Program/Peak)

200 / 400  / 800 watts

Nominal Impedance

8 Ohms

Input Connectors

2XSpeakon, NL4,  1+ / 1- (Linked from input to output)

Crossover Mode

Passive

Crossover Frequency

2.4 kHz

Drivers

HF: 1X1" / LF: 2X6.5"

Enclosure

12mm MDF

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (W×H×D)

205X525X215

Package(W×H×D):

270X570X255

Q'ty for package

1PCS / 1 CTN, Inner and outer carton, double package.

Weight (Kg)

11

Suspensive/Mounting

35mm tube socket, M8 X 4 Screw nuts for U-Bracket or wire flying.

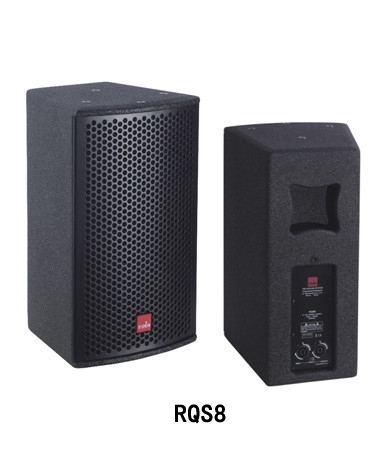

Features & Application

1.  HF driver with 1" Voice Coil.

2.  LF driver with 8"  (150 watt/RMS).

3. 8" 2-way passive fullrange system.

4.  M8 X 4 screw-nuts for installation or flying.

5.  Flange adapter (tube dia. 35mm).

6.  Rotatable logo Badge.

7.  Water-borne sand texture painting appearance (4 times)

8.  Compact design.

9.  Double carton package.

10. Multi-purpose Usage.

Specification

Type

8" , 2-Way Fullrange

Frequency Range(-10dB)

65Hz~18kHz

Frequency Response(+3dB)

75Hz~17kHz

Coverage pattern

90°H X 60°V nominal

Sensitivity(1W/1m) (SPL)

97 dB

Sensitivity Max.(SPL)

117 dB

Power Rating (Continous/Program/Peak)

150 / 300 /600 watts

Nominal Impedance

8 Ohms

Input Connectors

2XSpeakon, NL4,  1+ / 1- (Linked from input to output)

Crossover Mode

Passive

Crossover Frequency

2.7 kHz

Drivers

HF: 1X1" / LF: 8"

Enclosure

15mm MDF

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (W×H×D)

260X455X245

Package(W×H×D):

315X495X295

Q'ty for package

1 PCS / 1 CTN, Inner and outer carton, double package.

Weight (Kg)

8

Suspensive/Mounting

35mm tube socket, M8 X 4 Screw nuts for U-Bracket or wire flying.

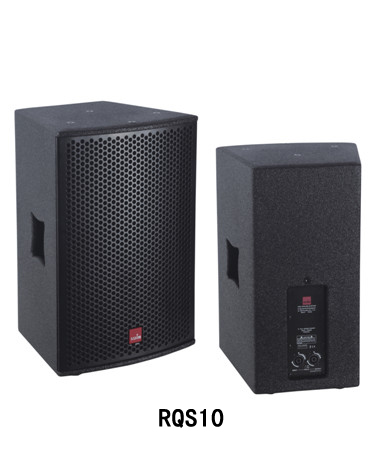

*  Features & Application

1.  HF driver with 1" Voice Coil.

2.  LF driver with 10"  (200 watt/RMS).

3. 10" 2-way passive fullrange system.

4.  M8 X 4 screw-nuts for installation or flying.

5.  Flange adapter (tube dia. 35mm).

6.  Rotatable logo Badge.

7.  Water-borne sand texture painting appearance (4 times)

8.  Compact design.

9.  Double carton package.

10. Multi-purpose Usage.

*  Specification

Type

10" , 2-Way Fullrange

Frequency Range(-10dB)

60Hz~18kHz

Frequency Response(+3dB)

70Hz~17kHz

Coverage pattern

90°H X 60°V nominal

Sensitivity(1W/1m) (SPL)

96 dB

Sensitivity Max.(SPL)

121 dB

Power Rating (Continous/Program/Peak)

200 / 400 / 800 watts

Nominal Impedance

8 Ohms

Input Connectors

2XSpeakon, NL4,  1+ / 1- (Linked from input to output)

Crossover Mode

Passive

Crossover Frequency

3 kHz

Drivers

HF: 1X1" / LF: 10"

Enclosure

15mm MDF

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (W×H×D)

335X510X300

Package(W×H×D):

390X550X350

Q'ty for package

1 PCS / 1 CTN, Inner and outer carton, double package.

Weight (Kg)

12.6

Suspensive/Mounting

35mm tube socket, M8 X 4 Screw nuts for U-Bracket or wire flying.

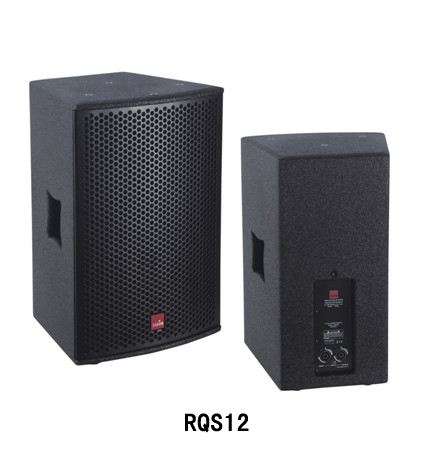

Features & Application

1.  HF driver with 1" Voice Coil.

2.  LF driver with 12"  (200 watt/RMS).

3. 12" 2-way passive fullrange system.

4.  M8 X 4 screw-nuts for installation or flying.

5.  Flange adapter (tube dia. 35mm).

6.  Rotatable logo Badge.

7.  Water-borne sand texture painting appearance (4 times)

8.  Compact design.

9.  Double carton package.

10. Multi-purpose Usage.

Specification

Type

12" , 2-Way Fullrange

Frequency Range(-10dB)

65Hz~18kHz

Frequency Response(+3dB)

70Hz~17kHz

Coverage pattern

60°H X 40°V nominal

Sensitivity(1W/1m) (SPL)

98 dB

Sensitivity Max.(SPL)

124 dB

Power Rating (Continous/Program/Peak)

200 / 400 /800 watts

Nominal Impedance

8 Ohms

Input Connectors

2XSpeakon, NL4,  1+ / 1- (Linked from input to output)

Crossover Mode

Passive

Crossover Frequency

3.5 kHz

Drivers

HF: 1X1" / LF: 12"

Enclosure

15mm MDF

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (W×H×D)

385X605X340

Package(W×H×D):

440X640X390

Q'ty for package

1 PCS / 1 CTN, Inner and outer carton, double package.

Weight (Kg)

20

Suspensive/Mounting

35mm tube socket, M8 X 4 Screw nuts for U-Bracket or wire flying.

Features & Application

1.  HF driver with 1" Voice Coil.

2.  LF driver with 15"  (300 watt/RMS).

3. 15" 2-way passive fullrange system.

4.  M8 X 4 screw-nuts for installation or flying.

5.  Flange adapter (tube dia. 35mm).

6.  Rotatable logo Badge.

7.  Water-borne sand texture painting appearance (4 times)

8.  Compact design.

9.  Double carton package.

10. Multi-purpose Usage.

Specification

Type

15" , 2-Way Fullrange

Frequency Range(-10dB)

50Hz~18kHz

Frequency Response(+3dB)

60Hz~17kHz

Coverage pattern

60°H X 40°V nominal

Sensitivity(1W/1m) (SPL)

101 dB

Sensitivity Max.(SPL)

129 dB

Power Rating (Continous/Program/Peak)

300 / 600 / 900 watts

Nominal Impedance

8 Ohms

Input Connectors

2XSpeakon, NL4,  1+ / 1- (Linked from input to output)

Crossover Mode

Passive

Crossover Frequency

3 kHz

Drivers

HF: 1X1" / LF: 15"

Enclosure

18mm MDF

Appearance Finish

Water-borne (Green Eco), Sand texture painting (4 times)

Dimensions (W×H×D)

432X700X420

Package(W×H×D):

485X740X470

Q'ty for package

1 PCS / 1 CTN, Inner and outer carton, double package.

Weight (Kg)

25

Suspensive/Mounting

35mm tube socket, M8 X 4 Screw nuts for U-Bracket or wire flying.
