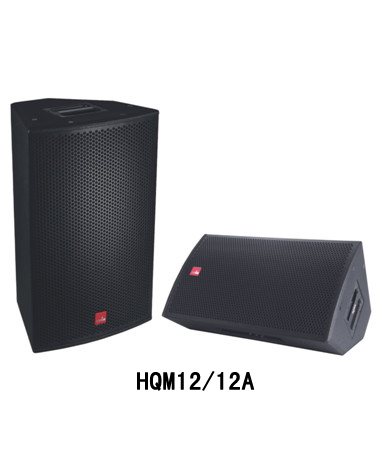

Features & Application
|
|
1. Stand installation with monitor type (two-way type)
|
|
2. HF compression driver with 1 3/4" Voice Coil / 1.5" Horn throat.
|
|
3. LF driver with 12" (400 watt/RMS) / Zebra conepaper.
|
|
4. 12" 2-way passive fullrange system.
|
|
5. M8 X 4 screw-nuts for installation or flying.
|
|
6. Flange adapter (tube dia. 35mm).
|
|
7. Rotatable logo Badge.
|
|
8. Water-borne sand texture painting appearance (4 times)
|
|
9. Rotatable Horn for flying.
|
|
10. Compact design.
|
|
11. Double carton package.
|
|
12. Multi-purpose Usage.
|
|
Specification
|
|
Type
|
12" , 2-Way Fullrange, Multi-function Type
|
|
Frequency Range(-10dB)
|
50Hz~20kHz
|
|
Frequency Response(+3dB)
|
65Hz~19kHz
|
|
Coverage pattern
|
90°H X 60°V nominal
|
|
Sensitivity(1W/1m) (SPL)
|
101 dB
|
|
Sensitivity Max.(SPL)
|
130 dB
|
|
Power Rating (Continous/Program/Peak)
|
400 / 800 / 1600 watts
|
|
Nominal Impedance
|
8 Ohms
|
|
Input Connectors
|
2XNutrik ® Speakon, NL4 , 1+ / 1- (Linked from input to output)
|
|
Crossover Mode
|
Passive
|
|
Crossover Frequency
|
1.8 kHz
|
|
Drivers
|
HF: CSR150D/SUIM X 1, LF: HQ12 / SUIM X 1
|
|
Enclosure
|
15mm Plywood
|
|
Appearance Finish
|
Water-borne (Green Eco), Sand texture painting (4 times)
|
|
Dimensions (W×H×D)
|
385X620X350
|
|
Package(W×H×D):
|
435X660X395
|
|
Q'ty for package
|
1 PCS / 1 CTN, Inner and outer carton, double package.
|
|
Weight (Kg)
|
23/26
|
|
Suspensive/Mounting
|
35mm tube socket, M8 X 4 Screw nuts forwire flying.
|
|
Technical Data for Amp. Module
|
HQM12A
|
|
Output Power
|
500W RMS
|
|
Input Type
|
Balanced differential
|
|
Input Impedance
|
33K Ohms
|
|
Rated THD
|
<0.007%
|
|
Line Connectors
|
Line: XLR
|
|
Output Connectors
|
Line Loop Thru: XLR / Male
|
|
Operation Voltage
|
~100-120V OR ~220-240v
|
