K-NET/COBRANET

COBRANET MODULE





Technical data

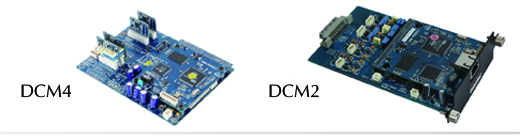

CobraNet Module

DCM4

DCM2

Analog Input

4CH(XLR jack)

2CH(XLR jack)

Analog Output

4CH(XLR jack)

2CH(XLR jack)

Adjustable Analog input

+/-30dBV

+/-30dBV

Resolution

16bit,20bit,24bit

16bit,20bit,24bit

Sample Rate

48KHz

48KHz

Dynamic Range

110dBV

110dBV

THD + Noise

<0.008%@1KHz,0dB Gain

<0.008%@1KHz,0dB Gain

Frequency Response

20~20KHz @ +/-0.5dB

20~20KHz @ +/-0.5dB

Noise Floor

<-100dBV

<-100dBV

Cross Talk

<-100dBV

<-100dBV

Ethernet

Cat5 Cable Max 100M,100
Base-T

Cat5 Cable Max 100M,100
Base-T

Power

DC14V

DC14V
