Description
Technical data
|
|

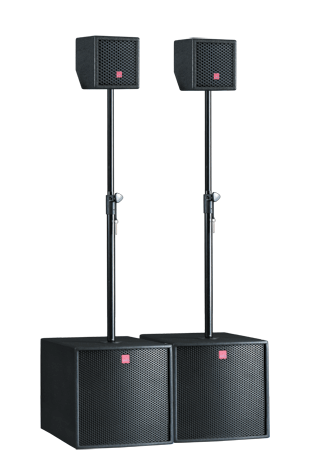

XT5 TOP |
|
Type |
5", two-way, coaxial |
|
Frequency Range (-10dB) |
85 Hz ~18kHz |
|
Coverage Pattern |
90°x 90°nominal |
|
Sensitivity (1w/1m) (SPL) |
93 dB |
|
Crossover Mode |
Passive |
|
Crossover Frequency |
2.2 kHz |
|
Drivers |
LF: 1 x 5", HF: 1X1" |
|
Nominal Impedance |
8 Ohms |
|
Dimensions (WxHxD) |
160x210x160mm |
| Suspension / Mounting |
2XM8 mounting points |
|
|
|
|
|
XT10 SUB |
|
Type |
10", Bass reflex type subwoofer |
|
Frequency Range (-10dB) |
45Hz~200Hz |
|
Sensitivity (1w/1m) (SPL) |
100 dB |
|
Drivers |
1 x 10", 2.5" Voice Coil |
|
Nominal Impedance |
8 Ohms |
|
Dimensions (WxHxD) |
290x300x380mm |
|
Amp. Mode Type |
Bi-Amp System |
|
Output Power / Subwoofer |
300 watts |
|
Output power / Mid-Hi (Top) |
80 watts |
|
Line Connectors |
Line: XLR / Female |
| Output Connectors |
Line Loop Thru: XLR / Male; |
|
|
Speaker SPEAKON: NL4, 1+/1- |
|
Operation Voltage |
115Volt or 230Volt |
